Atlanta Interior Door Lever Set
Atlanta Interior Door Lever Set

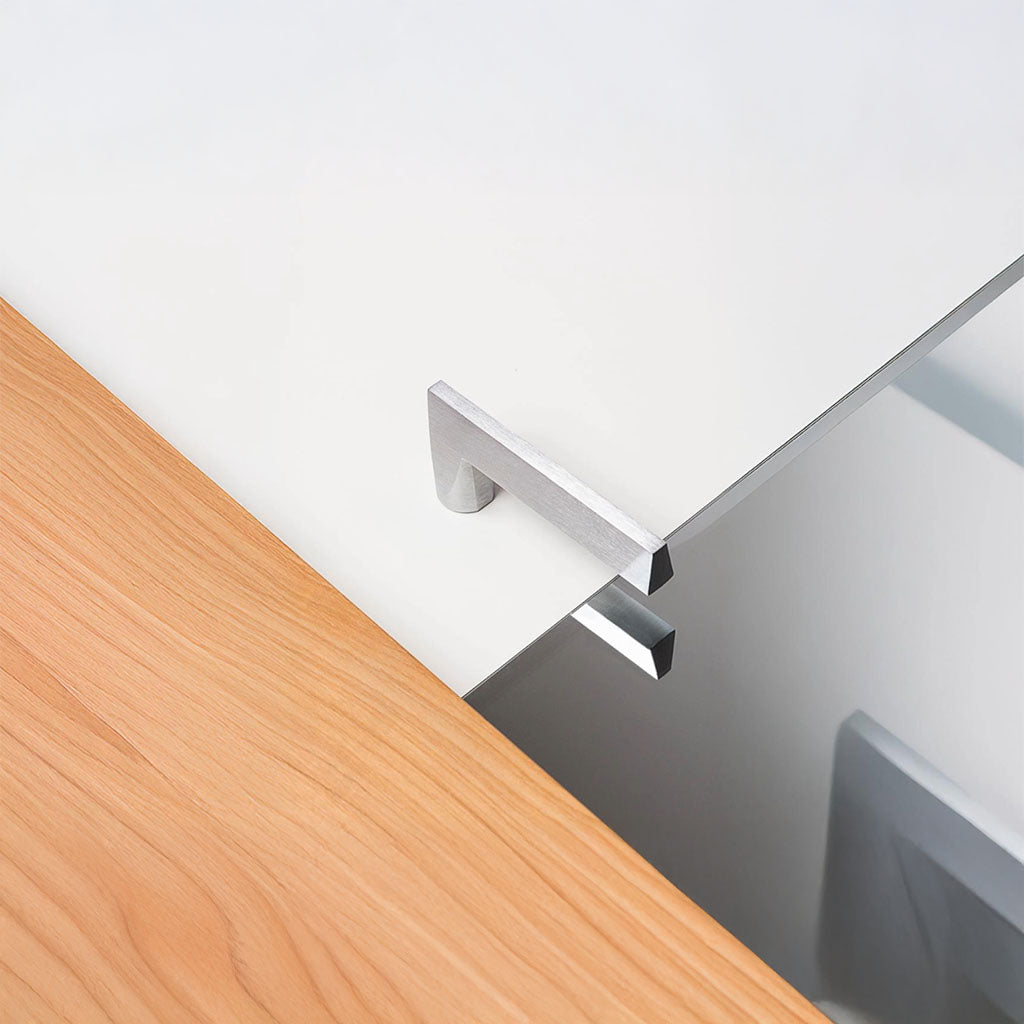

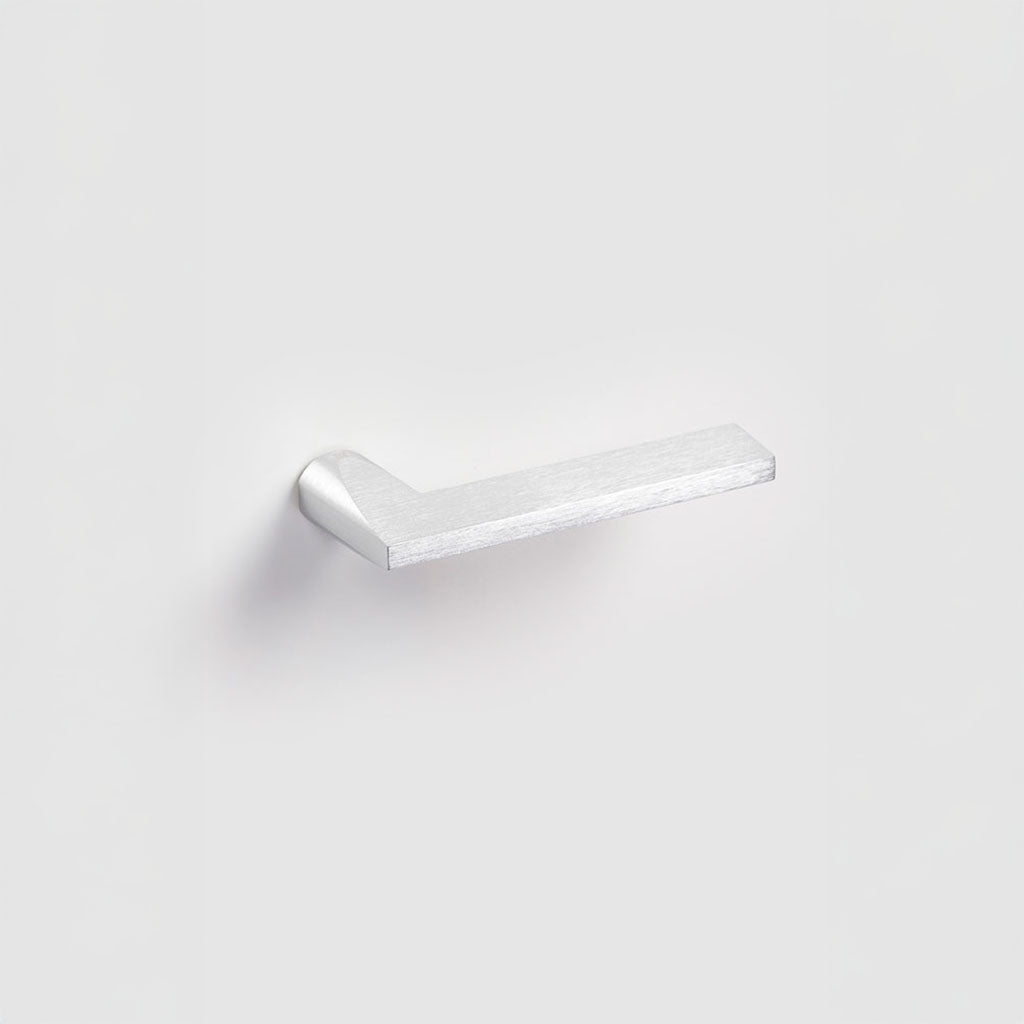

The Atlanta Lever Set by Verum Italy is a door lever from the Nuda collection, featuring a precise, geometric form with sharp angular lines and a clean, straight underside. Installed directly into the door without a rose, creating a streamlined aesthetic. Made in Italy.
A key design feature is the absence of a rose backplate, making these handles unsuitable for pre-bored doors.
View the Nuda collection here.
Function Overview
Passage
For doors that latch but do not require a lock (e.g., hallways, closets).
Components included:
- Pair of levers
- Euro mortise
- Strike plate
Privacy
For doors that lock from one side (e.g., bathrooms, bedrooms).
Components included:
- Pair of levers
- Thumb turn with emergency release trim
- Euro mortise
- Strike plate
Dummy (Half or Full Set)
For decorative or push/pull applications, such as closets or pantry doors.
Half Dummy Set — A single lever installed on one side of the door only, with no hardware on the reverse.
Full Dummy Set — A pair of levers installed on both sides of the door, providing a balanced look with no latch or locking function.
Components included:
- Lever(s)
- Dummy adapter
Dummy sets are compatible with the Sugatsune Magnetic Latch (sold separately).
Specifications
- Lever: L 130 mm (5.12") × W 24 mm (0.94") × D 58 mm (2.28")
- Thumb turn (privacy only): W 27 mm (1.06") × D 23 mm (0.91")
- Thumb turn spindle (privacy only): Ø 6 mm. Installs on the external (non-locking) side of the door.
- Thumb turn spindle hole (privacy only): Ø 16 mm. Spindle length must suit door thickness and may require shortening.
- Privacy latch: Must accommodate a 6 mm spindle.
- Door bore hole allowance: Ø 16 mm (0.63") – Ø 30 mm (1.18")
- Not suitable for pre-bored doors.
- Commercial installations: Nuda handles can be ordered with preassembled spindles featuring a single fixing grain. Contact us for details.
Materials
Base material: Zamak.
Available finishes
- Plated Satin Chrome Lacquered
- Plated Polished Chrome Lacquered
- Plated Bronze Lacquered
- Powder Coated White
- Powder Coated Black
